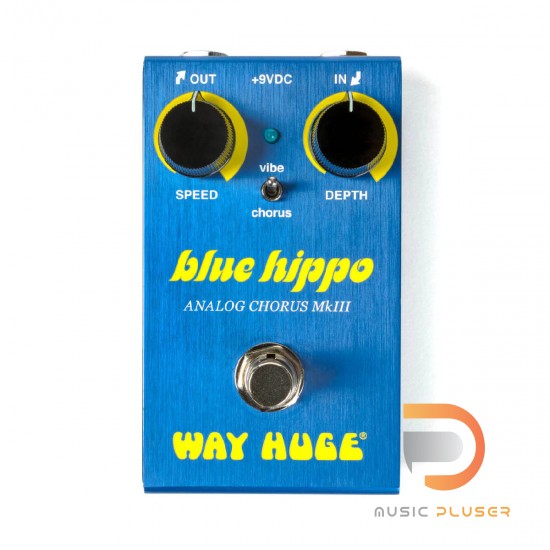

SPEED knob sets rate of aqueous modulation
VIBE switch toggles vibrato goodness on/off
DEPTH knob regulates level of wetness
FOOTSWITCH toggles the effect on/bypass (blue LED indicates effect is on)
POWER
The Blue Hippo™ Analog Chorus can be powered by a single 9V battery, a Dunlop ECB003/ECB003EU adapter, or the DC Brick™ and Iso-Brick™ power supplies. The power input is a 5.5mm x 2.1mm jack with the positive voltage on the outer sleeve. Using an external power supply will disconnect the battery. Disconnect the input jack to preserve battery life when not in use. The pedal will lock into bypass mode when it is time to change the battery. It also includes power protection circuitry to prevent damage from AC power supplies.
