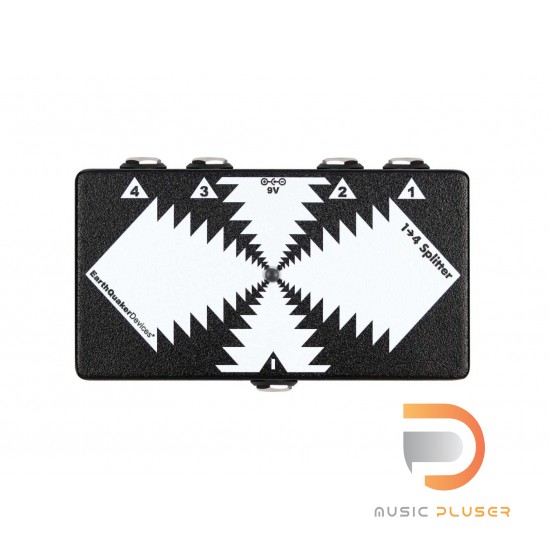

EarthQuaker Devices One to Four Splitter

The One to Four Splitter allows you to take one input and send it through four buffered outputs for unlimited creative potential. This device features a unity gain buffer on each output for maximum punch and clarity. These buffered outputs have a flat frequency response with a high 1MOhm input impedance and a low 100 Ohm output impedance. This ensures that your signal won’t lose any quality and will sound just like you intended. Even long cable runs are no match for the One to Four Splitter.

TECH SPECS:

• Dimensions : 4.75 x 2.5 x 1.5 in. (120 × 63 × 38 mm)

• Current Draw : 15 mA

• Input Impedance : 1 MΩ

• Output Impedance : 100 Ω

• Power : This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
