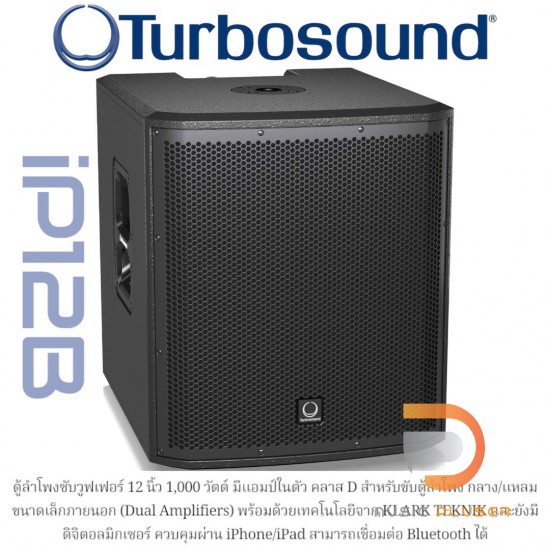

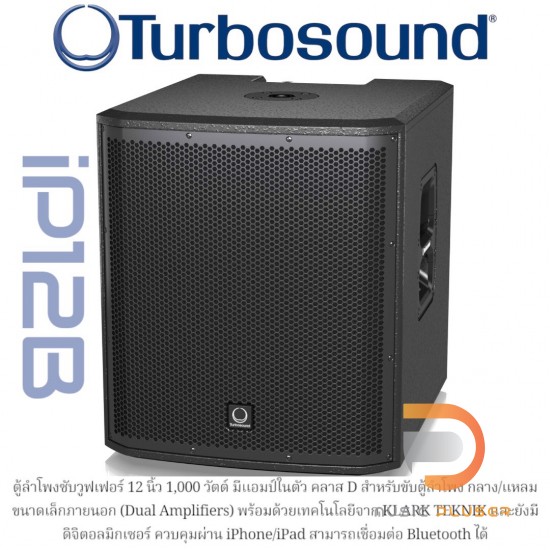

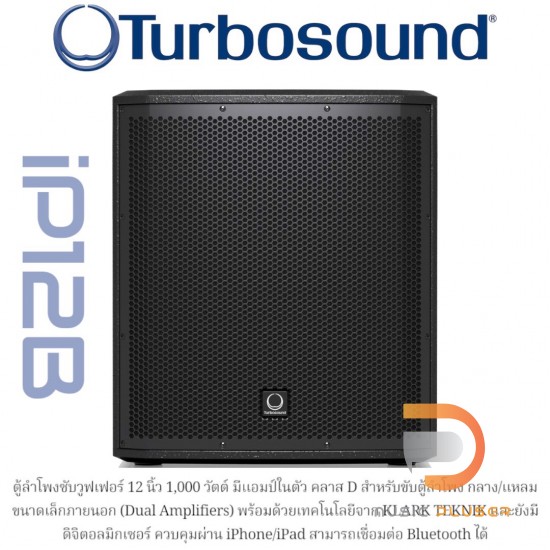

Turbosound iP12B 1000 Watt Powered 12″ Subwoofer
ลำโพงซับวูฟเฟอร์ Turbosound iP12B เป็นตู้ลำโพงซับเบสแบบมีกำลังขยายในตัว 1000 วัตต์ ขนาดดอกลำโพง 12″ Subwoofer with Dual Amplifiers for Satellite Speakers, KLARK TEKNIK Spatial Sound Technology, Digital Mixer, Remote Control via iPhone/iPad and Bluetooth Audio Streaming
The Turbosound iNSPIRE iP12B powered subwoofer houses high levels of low-end punch in a lightweight, easy-to-use package. With definition and clarity that’s typically associated with larger subs, the 1,000-watt iNSPIRE iP12B is ideal for houses of worship, boardroom presentations, nightclubs, or any other medium-sized performance spaces.
On top of that, the iNSPIRE iP12B is packed with industry-leading Klark Teknik DSP, Class D amplifier, and Spatial Sound technology, as well as convenient Bluetooth stereo audio streaming and iPhone/iPad remote control.
Sporting a powerful 12″ long-excursion low frequency driver, the iNSPIRE iP12B will fill your room with as much deep, chest-pounding bass as you can handle. Your Sweetwater Sales Engineer will tell you – the Turbosound iNSPIRE iP12B powered subwoofer really thumps!
Turbosound iNSPIRE iP12B Powered Subwoofer at a Glance:
Compact design for maximum portability and easy setup
The Turbosound iNSPIRE iP12B powered subwoofer is designed for maximum portability and low end support. Setup is child’s play: attach your passive loudspeakers, connect your mic or mixer feed, then plug into a power source. Then sit back a experience a roomful of the amazingly deep, chest-pounding bass that won the coveted Queen’s Award three times.
Onboard Klark Teknik DSP delivers superb sound
Thanks to its built-in DSP from Klark Teknik, the Turbosound iNSPIRE iP12B powered subwoofer delivers superb sound, no matter where you are. And we’re not just talking about some paltry EQ enhancement – the iNSPIRE iP12B’s 24-bit DSP actually analyzes the incoming signal and intelligently applies specific filters, ensuring optimal sound quality. It’s like having an audio engineer monitoring and mixing for you, dialing in the perfect EQ, and constantly making subtle adjustments to the crossover, compressor/limiter, and more – resulting in killer sound quality at all times.
Class D amplifier provides you with massive power in a lightweight package
The Turbosound iNSPIRE iP12B powered subwoofer provides you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable, and lightweight package. Klark Teknik’s Class D amplifier technology makes all the difference, giving you phenomenal energy efficiency, and eliminating the need for heavy power supplies and massive heat sinks. In other words, the iNSPIRE iP12B is light enough to carry and efficient enough to thump all night without overheating!
Built-in digital mixer for simple, complete control
With its fully-addressable onboard digital mixer, the Turbosound iNSPIRE iP12B powered subwoofer lets you take full control of your sound, either locally or via your iPhone or iPad. Packed with two combo jack/XLR connectors that accept balanced and unbalanced connections for dynamic mics and line-level instruments, as well as a simple and intuitive user interface consisting of a single rotary push-encoder, the iNSPIRE iP12B makes obtaining great sound child’s play. You also get an easy-to-read backlit LCD panel display, for quick and easy adjustment of delay, limiter, and EQ parameters.
Bluetooth capabilities allow for convenient audio streaming
Leave your media players and mess of cables at home! The Turbosound iNSPIRE iP12B powered subwoofer allows you to stream music from your iPad or iPhone directly to the iNSPIRE iP12B via Bluetooth.
| Frequency response | 45 Hz – 150 Hz ±3 dB 38 Hz – 200 Hz -10 dB |
| Nominal dispersion | Half space |
| Maximum SPL | 120 dB |
| Crossover type | Active |
| Transducers | 1 x 12″ (305 mm) LF driver |
| Limiter | Peak and RMS |
| Maximum output power* | |
| Subwoofer | 600 W |
| Satelites | 2 x 200 W |
| Type | Class-D |
| Protection | Short circuit, open circuit, thermal |

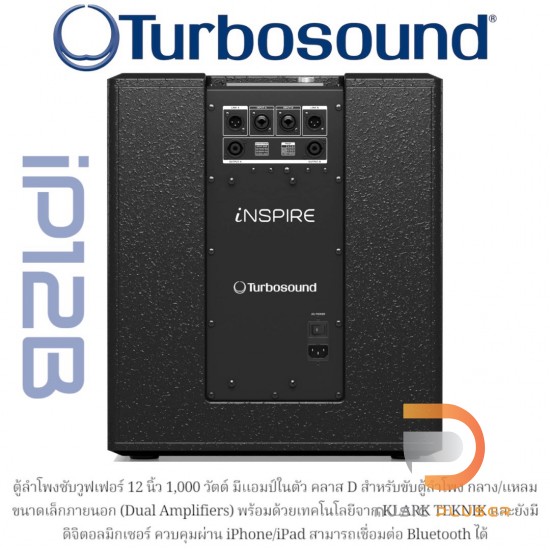

| Output L / R | 2 x Neutrik speakON* NL4, pins 1+ / 1- |
| Input A / B | 2 x combo jack / XLR |
| Sensitivity | 4 dBu, nominal |
| Input impedance | 16 kΩ unbalanced, 33 kΩ balanced |
| Maximum input level | +22 dBu |
| Link output | XLR |
| Mains supply | IEC mains connector with integrated power switch |
| Hardware | Rotary push-encoder |
| Software | iOS interface via Bluetooth |
| Factory EQ presets | Positioning, Sound mode, phase |
| Display | LCD 128 x 32, blue, backlit |
| Equalisation | Bass, middle and treble |
| Crossover | High pass L-R 24 dB/oct |
| Protection | Lock-out function for all settings |
| Frequency range | 2402 MHz ~ 2480 MHz |
| Channel number | 79 |
| Version | Bluetooth 4.0 dual mode |
| Output | 8 dBM |
| Compatibility | Supports A2DP 1.2 profi le |
| Maximum communication range | 30 m (without interference) |
| Connectivity | Master-slave: stereo pairing link |
| Power consumption | 110 W @ 1⁄8 max power |
| Voltage (fuses) | |
| USA / Canada / Japan | 100-120 V~, 50/60 Hz (T 6.3 A H 250 V) |
| UK / Australia / Europe | 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) |
| Korea / China | 220-240 V~, 50/60 Hz (T 3.15 A H 250 V) |
| Dimensions (H x W x D) | 485 x 420 x 500 mm (19.1 x 16.5 x 19.7″) |
| Net weight | 22.3 kg (49.2 lbs) |
| Construction | 15 mm (5⁄8″) birch plywood sub |
| Finish | Semi matt black paint |
| Grille | Powder coated perforated stee |
